2. Select "Add an activity or resource".
3. Select "External tool".
4. Select "Show more…" to reveal all of the fields in the General section of the form.
The External tool form may have additional fields but you only need to complete the ones below.
5. Add a name for the LearnSci Homepage.
6. (Optional) Add a description for the LearnSci Homepage.
If a description is added, "Display description on course page" will also have to be ticked.

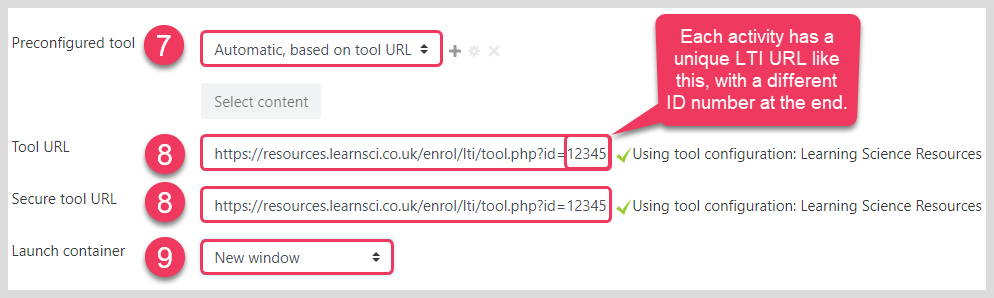

7. Ensure "Automatic, based on tool URL" is selected in the "Preconfigured tool" field.
8. Add the LTI URL for your LearnSci Homepage, LabSim or Smart Worksheet into the "Tool URL" and "Secure tool URL" fields.
9. You must select "New window" as the launch container.
It will only be possible to open LTI URLs in a new window as the cookies generated are considered 3rd party and are blocked on many browsers by default.
Note: A green tick by the Tool URL field (after the LTI URL has been added) means the Learning Science LTI tool configuration has been recognised and you do not need to add a Consumer Key or Shared Secret (skip steps 10 & 11).
10. Add the
"Consumer key". There is no need to add this if you see a

beside the
"Tool URL" field as shown in step 8.
11. Add the
"Shared Secret". There is no need to add this if you see a

beside the
"Tool URL" field as shown in step 8.
Once you have entered the Consumer key and Shared secret, make sure a green tick appears beside the Tool URL field to indicate the Learning Science LTI tool has been recognised before continuing to the next step.
12. Select "Privacy" to reveal all of the fields.
13. Tick "Share launcher’s name with the tool". If it's already ticked, move on to the next step.
14. Tick "Share launcher's email with the tool". If it's already ticked, move on to the next step.
Sharing the launcher's name and email with the tool will allow you to distinguish users within the Moodle Gradebook. If these settings are not ticked, students will be given anonymised names and email addresses.
15. Make sure "Accept grades from the tool" is not ticked.
If you are looking to add a grade synced activity and want to have a grade column created within the Moodle Gradebook then follow this guide instead.
